Shelf Pin Drilling Jig – Drill 7 Perfect Holes at Once

🔧 PRODUCT OVERVIEW

Drill 7 perfect shelf pin holes – no measuring, no mistakes. Transparent jig with 32mm spacing, centering notches, repositioning pins, and adjustable fence (37/64mm). Includes 1/4″ & 5mm bits + alignment pins.

⚡ KEY FEATURES

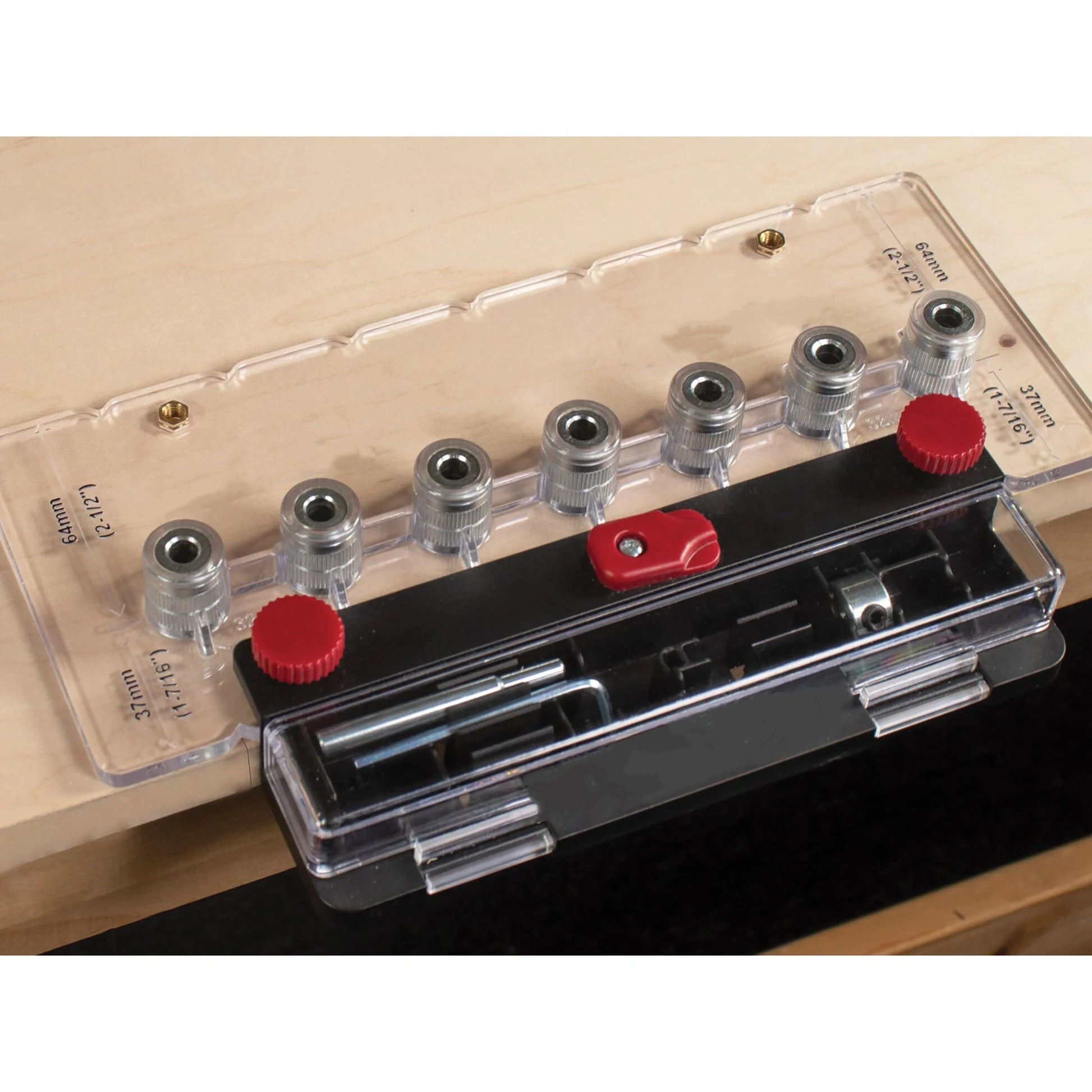

🔍 See-through body – Eliminates guesswork. Line it up, drill, move on.

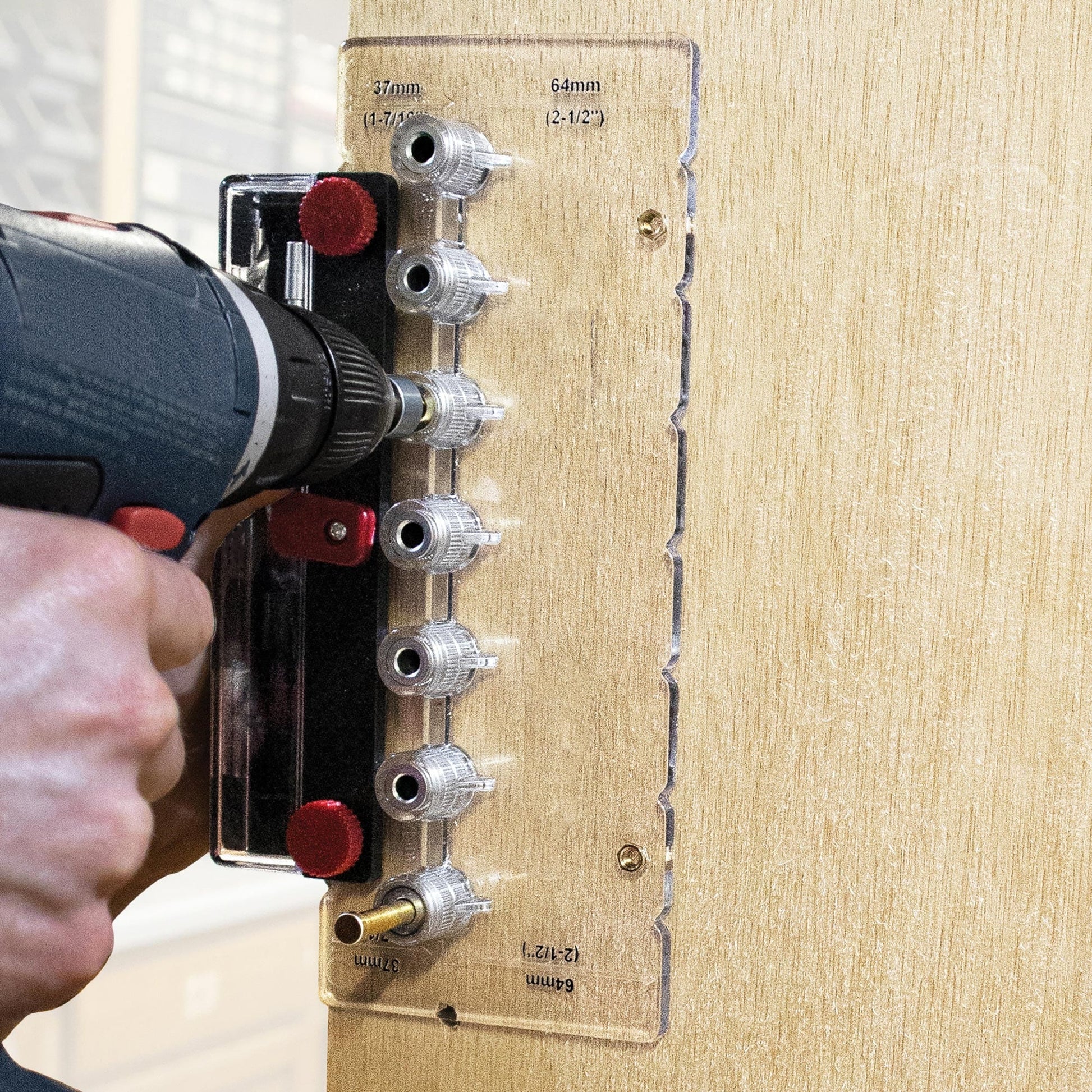

⚡ Drill 7 holes at once – Hardened steel guide bushings with standard 32mm spacing.
📏 Adjustable setback – Fence gives you 37mm or 64mm depth options. Removable for back panels.

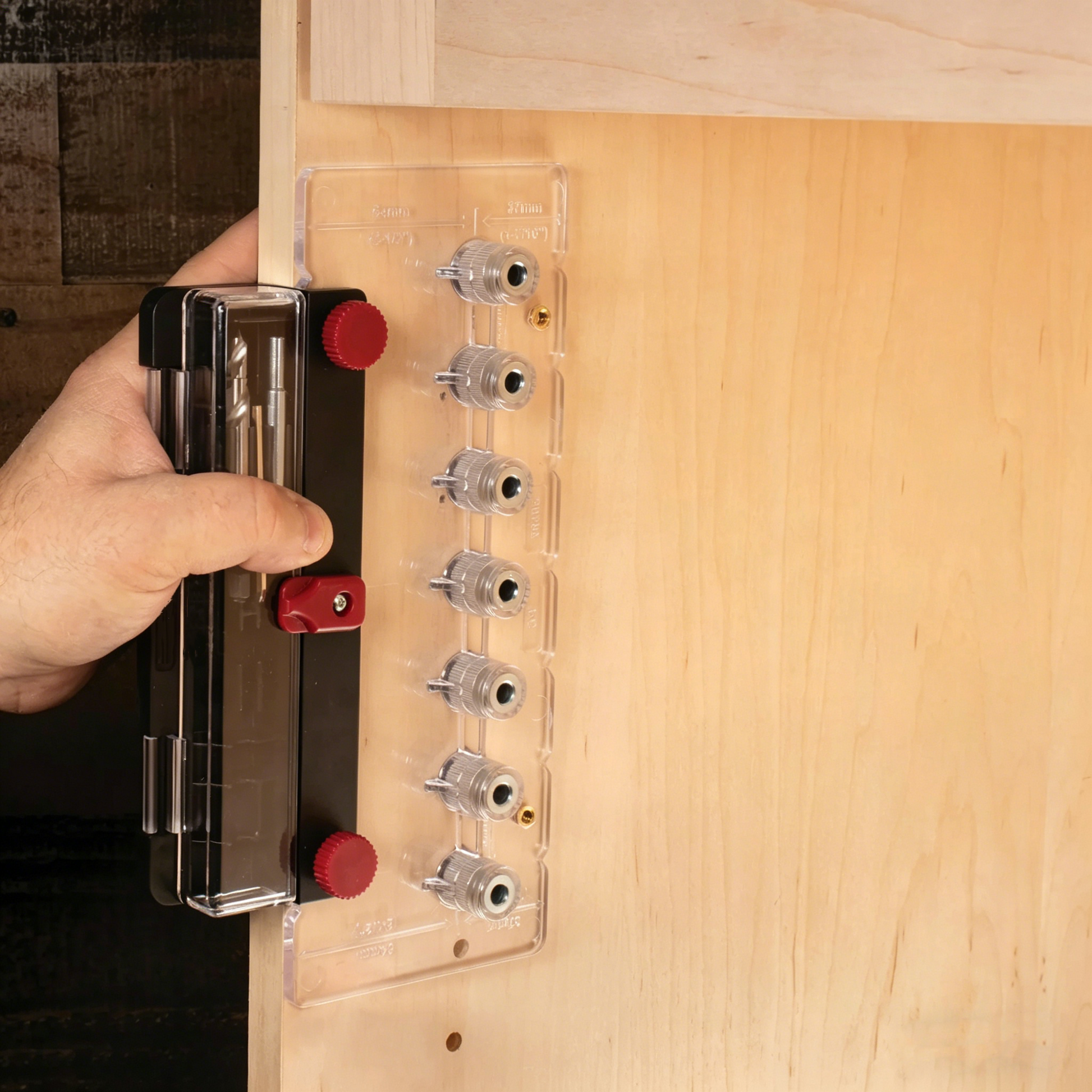

 📍  Centering notches – Snap alignment in seconds. No measuring tape needed.
🔄 Reposition with pins – Includes 1/4“ and 5mm indexing pins for unlimited hole series.
🔩 Two drill bits included – 1/4” and 5mm hex shank bits with quick-release, impact-ready design.

📏 TECHNICAL SPECIFICATIONS

✦ Hole spacing → 32mm (standard)
✦ Holes per setup → Up to 7
✦ Setback options → 37mm or 64mm (adjustable fence)
✦ Drill bits → 1/4“ hex shank + 5mm stepped hex shank
✦ Indexing pins → 1/4” and 5mm
✦ Material → Transparent polycarbonate body + hardened steel bushings
✦ Fence → Detachable, doubles as storage compartment

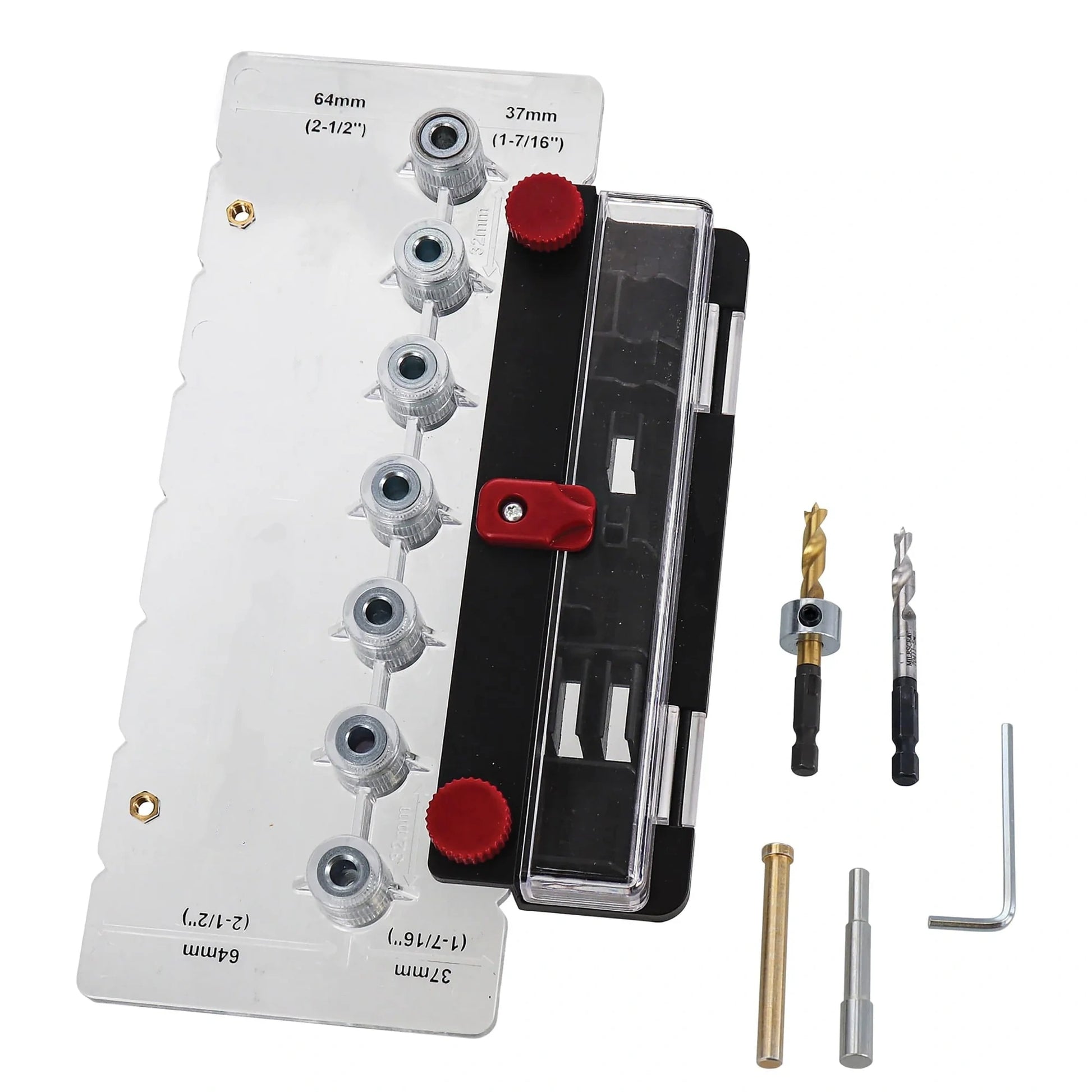

 PACKAGE CONTENTS

  1 × Shelf pin drilling jig (clear body)
  1 × Detachable fence
  1 × 1/4“ hex drill bit
  1 × 5mm stepped hex drill bit
  1 × 1/4” stop collar
  1 × 1/4“ alignment pin
  1 × 5mm alignment pin
  1 × User manual

🔚 FINAL WORDS

Stop measuring. Start drilling.

This jig turns a tedious, error-prone job into a 10-second repeatable process. Whether you‘re building cabinets, bookshelves, or closets – you’ll wonder how you ever worked without it.
